Our Stepper drives deliver accurate and high speed repeatable labeling. Easy to reach hand wheel adjustment and side rail quick-set adjustment means more “up-time” on your production line!

VPRO series structures the maintenance information. The sufficient information assists the maintenance people to keep the machines in the best conditions. VPRO series owns the multi-function expanding capability, such as printing detection, barcode detection, missing label detection and the special function assigned by the user.

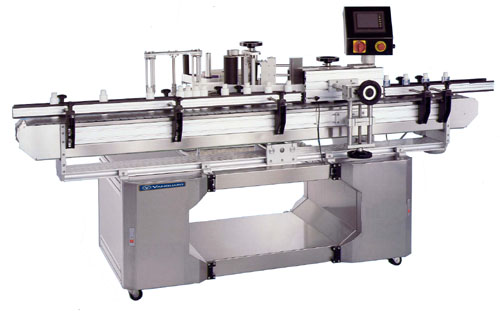

The VPRO Series 516 is used in virtually all sorts of industries such as pharmaceuticals, personal care products, foods, vitamins, cosmetics, and chemicals, where best-in-class reliability is the mandate for production efficiency.

Armed with the newest and fastest NETCON control technology, it lights-up the “one-touch” bright digital Display screen for quick set-up. .

Voltage	220/10 VAC 50/60 HZ 1 Phase
Power	1100VA
Controls	NETCON TOUCH SCREEN
Conveyor Speed	0~40 m/min
Dispensing Speed	40 m/min MAX.
Applicator Height	150 mm (5 7/8”)/200mm (7 7/8”)
Conveyor Width	160mm (6 5/16”)
Label Reel InnerF	76mm (3”)
