Vanguard Pharmaceutical Machinery, VPRO-625 Labeler

Labeling Machine
VML-760 High Speed
VML-850 (vial)
VML-760 Diagram

VTP-200 (wrap around)

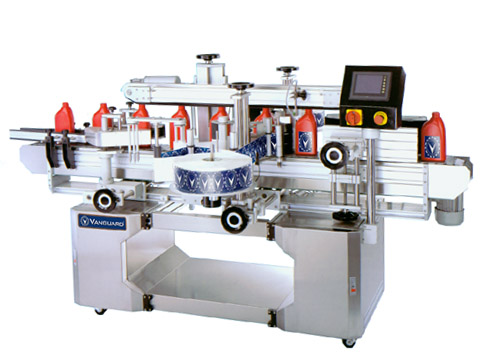

Vanguard Pharmaceutical Machinery, VPRO-625 Labeling Machine


Our Stepper with servo drives delivers accurate and high speed repeatable labeling.  Easy to reach hand wheel adjustment and side rail quick-set adjustment means more “up-time” on your production Line!

 Armed with the newest and fastest NETCON control technology, it lights-up the “one-touch” bright digital Display screen for quick set-up.

 The VPRO Series 625 is used in virtually all industries such as pharmaceuticals, personal care products, foods, vitamins, cosmetics, and chemicals, where best-in-class reliability is the mandate for production efficiency.

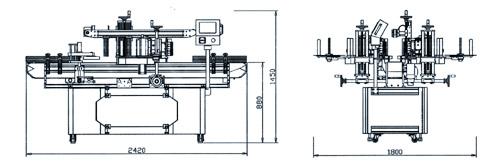

                   Vanguard Pharmaceutical Machinery, VPRO-625 Labeler Diagram


220/10 VAC 50/60 HZ 1 Phase
1320 VA
Conveyor Speed
0~40 m/min
Dispensing Speed
40 m/min MAX.
Applicator Height
150 mm (5 7/8”)/200mm (7 7/8”)
Conveyor Width

160mm (6 5/16”)

Label Reel Inner
76mm (3”)
