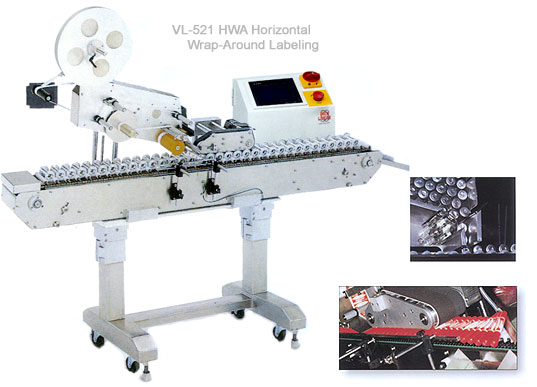

VL-521 HWA
The horizontal wrap-around labeling is a high speed labeling machine. With the special roller conveyor, in-feeder & out-feeder able to apply in any small diameter circular products, which unable to use in vertical labeling. With unoccupied space & moveable foot-stand, available to operate as an independent machine or contact with in-line machine.
|
| Model |
VL-521HWA |
| Power Source |
AC 110V/220V 50Hz/60Hz Single
Phase |
| Power Consumption |
840W |
| Control
System |
NETCON |
| Speed Control |
8 Levels Selection |
| Dispensing
Speed |
0 ~ 42m/Minute |
| Labeling Speed |
336/Minute |
| Driver |
Steep Motor Drived |
| Conveyor Width |
Standard 120mm(4.72") (Can be
set for user's width) |
| Label Length |
Min: 15mm (0.59") Max: 300mm
(11.81") |
| Label Reel Inner |
46mm (1.81") or 76mm (2.99") |
| Label Reel
Outer |
Max: 375mm (14.76") |
| Space Between Label |
Min: 3mm (0.59')
or more |
| Bottle
Height |
Min: 200mm (7.87") (Can be set for user) |
| Bottle Diameter |
10mm (0.39") ~
25mm (1") |
| Air |
40 ~ 80psi (For optional printer equipment) |
|
