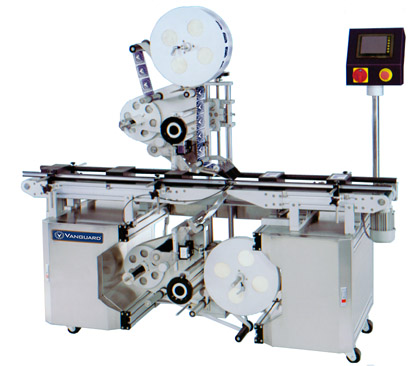

Vanguard Pharmaceutical Machinery, VPRO-225 Top/Bottom Labeler

 Vanguard Pharmaceutical Machinery, VPRO-225 Top & Bottom Labeler

VPro – 225 Top & Bottom Labeler delivers accurate and high speed repeatable labeling.  Easy to reach hand wheel adjustment and side rail quick-set adjustment means more “up-time” on your production line.

Armed with the newest and fastest netcon control technology, it lights-up the “one-touch” bright digital display screen for quick set-up.

The VPRO Series 225 is suitable for a wide range of flat package applications, different sizes are accommodated.

      Material:
      Stainless steel and anodized Aluminum
      Construction

  • Besides having the powerful operating functions, VPRO series could assist the people of the operation and the management to produce efficiently.
  • VPRO series owns the multi-function expanding capability, such as printing detection, barcode detection, missing label detection and special function assigned by the user.



  Vanguard Pharmaceutical Machinery, VPRO-225 Top Labeler

Voltage
220/10 VAC 50/60 HZ 1 Phase
Power
880VA
Controls
NETCON TOUCH SCREEN
Conveyor Speed
0~40 m/min
Dispensing Speed
40 m/min MAX.
Applicator Height
150 mm (5 7/8”)/200mm (7 7/8”)
Conveyor Width

180mm (6 5/16”)
Label Reel Inner
76mm (3”)
