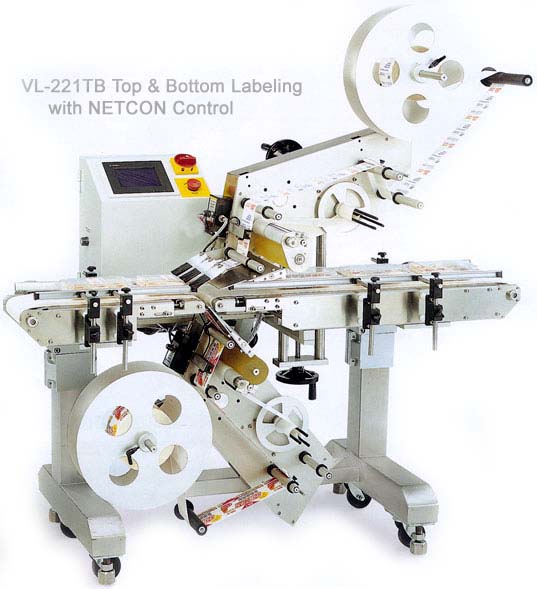

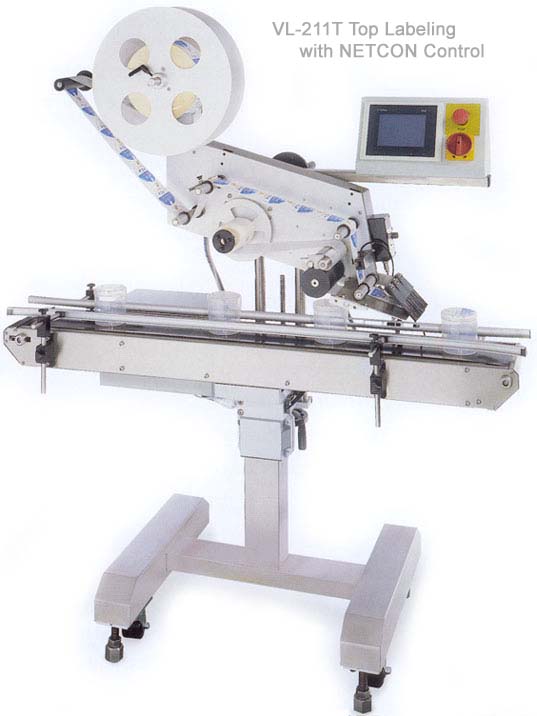

VL-211T & VL-221TB
Top Labeling machine - a low cost and high speed labeling machine which is suitable for flat containers, either in the top or corner labeling. With an adjustable guide rail to meet different sizes of containers.
|
| Model |
VL-211T |
VL-221TB |
| Power
Source |
AC
110V/220V 50Hz/60Hz Single Phase |
| Power Consumption |
700W |
825W |
| Control
System |
NETCON |
| Speed Control |
8 Levels Selection |
| Conveyor
Speed |
0 ~ 42m/Minute |
| Driver |
Stepper Motor Drived |
| Conveyor
Width |
Standard 180mm(7.09") (Can be
set for user's width) |
| Product Height |
Max: 300mm (11.81") (Can be
set for user) |
| Label
Length |
Min: 15mm (0.59")
Max: 300mm (11.81") |
| Label Reel Inner |
46mm (1.81") or 76mm (2.99") |
| Label
Reel Outer |
Max: 375mm (14.76") |
| Space Between Label |
Min:
3mm (0.12") or more |
| Labeling
Speed |
42m/(Container Length + 1cm Distance) |
| Air |
40
~ 80psi (For optional printer equipment) |
|
