Sealing Machine
VIS-2000C (aluminum foil induction)
VIS-2000F (aluminum foil induction)



Fast and efficient. The foil seals tightly without being affected by moisture, grease, or powder contamination on the sealing area.
The built-in protection system can automatically detect current overload, temperature overload, low water level, and the wrong electrical phase.

The cooling system is forced circulating design. The coolant is continuously re-circulated.
The cooling effect can be kept for a long time due to the low coolant loss.
The mainframe uses water cooled design that is superior to air cooled model which has thermal overload problem.
The machine used the solid state power transistor.
Module designed for high efficiency, stable output, easy repairs and maintenance.
The foot stands uses stainless steel and high strength aluminum alloy which are surface treated for superior finish.

VIS-2000F
Clear alarm Signal on control panel and LED screen.

Foil missing detector
(optional)

Operation warning light
Bottle Ejector (optional)

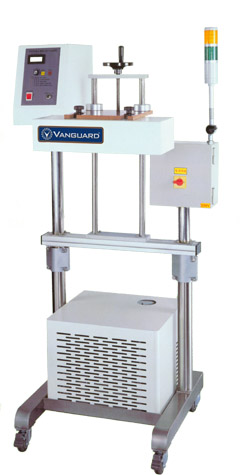

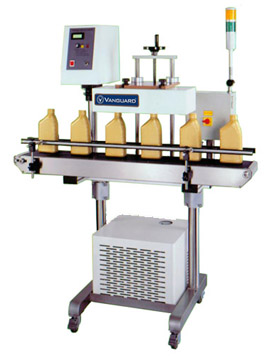

VIS-2000 Aluminum Foil Induction Machine


 Model
VIS - 2000C VIS - 2000F
 Power Output 2000W
 Input Voltage ACV 220V 1ph
 Max. Current

12A

 Cap Diameter

A : 20~60 mm / B 60~120mm

 Belt Speed 60 ~ 300bpm
 Cooling System Liquid Cooled
 Generator Type MOS-FET
 Frequency 50 - 100 KHz
 Dimensions L 1200 X
W 600 X
H 1600 mm
L 900X
W 600 X
H 1600 mm
Weight 160 kg 120kg
