| Model |

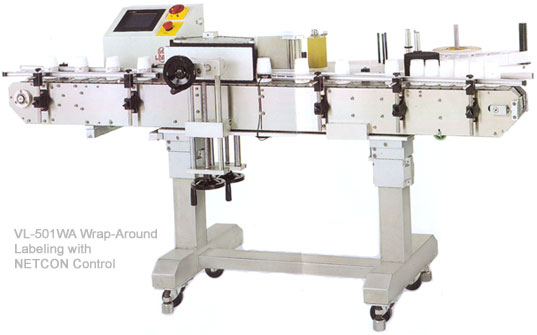

VL-501WA |

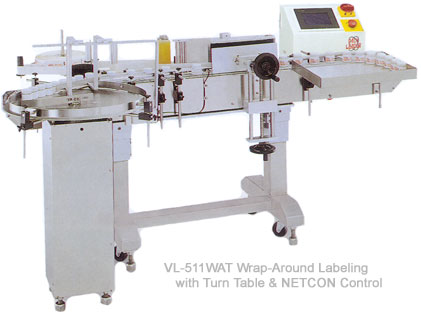

VL-511WAT |
| Power Source |
AC 110V/220V 50Hz/60Hz Single
Phase |
| Power Consumption |
760W |
840W |
| Control
System |
NETCON |
| Speed Control |
8 Levels Selection |
| Conveyor
Speed |
0 ~ 33m/Minute |
| Dispensing Speed |
0 ~ 42m/Minutes |
| Driver |
Steep Motor Drived |
| Bottle Height |
Max:
300mm (11.81') (Can be set for user) |
| Bottle
Diameter |
Min: 15mm (0.59") ~ 100mm (3.94") |
| Conveyor Width |
Standard 110mm(4.33") (Can be
set for user's width) |
| Product
Height |
Max: 300mm (11.81") (Can be
set for user) |
| Label Length |
Min: 15mm (0.59") Max: 300mm
(11.81") |
| Label Reel
Inner |
46mm (1.81") or 76mm (2.99") |
| Label Reel Outer |
Max: 375mm (14.76") |
| Space Between
Label |
Min: 3mm (0.59') or more |
| Labeling Speed |
33m/(Container Length + 1cm Distance) or (Label Length + 1cm Distance) |
| Air |
40 ~ 80psi (For optional printer equipment) |
