Vanguard Pharmaceutical Machinery, Automatic Counter and Filler

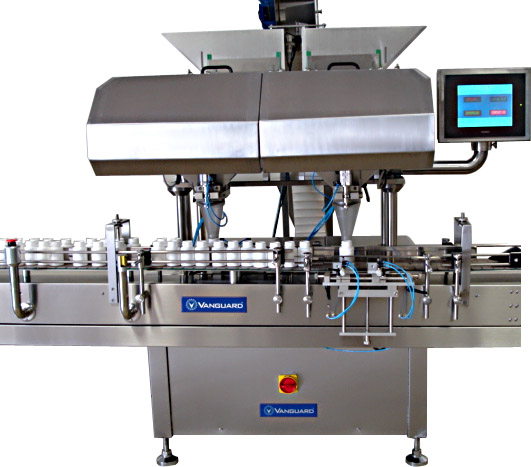

VSL-24 Automatic Electronic Tablet/Capsule Counter

Model VSL-24 Counter is suitable for counting hard gelatin capsules, softgels, tablets, round pills and other solid materials. Each unit has 24 channels with dual nozzles and equipped with Honeywell's Intelligent Sensor Eyes, which has a total of 176 sensor eyes for 100% counting accuracy. The counter has three-stage vibrations to infeed tablets or capsules; vibrating frequency adjustable for quick and stable infeeding. Bottles are positioned and changed by air cylinder to ensure accuracy positioning prior to filling to avoid spillage.  Also featuring slightly diving nozzles and lock bottles into placed prior to filling.

Features:
• New compact design, includes cleaner machine operation and easier clean-up accomplished by
  moving the “dust” extracting system to the back of the unit to more completely extract the excess
  tablet dust
• Japan's HMI Touch Screen Control Technology & Color Touch Screen Panel for reliable operations.
• Suitable for counting any sizes and shapes of tablets and capsules w/o changing parts.
• Sensor Control Double Rail Conveyor for Double Counting & Filling.
• The products dropped by two-stage vibration and dedusting system without scratch to the tablets
  or capsules, which is conformed to the cGMP standards.
• 24 counting channels, each equipped with 16 product sensors to count each product, pass over 6
  power vibratory units. The 24 channels vibratory plates are totally isolated from the vibratory drive
  system to provide inner protection, longer machine life and 100% counting accuracy.
Auto rejection system removes incorrectly filled containers off the conveyor track and resets
  the count to display the correct amount. This machine is also programmable to stop immediately
  when anyone container is incorrectly filled.
Equipped with advanced detecting system which includes a dust compensator and built-in spike
  controller. Sensor sensitivity automatically self-adjusts to offset the gradual accumulation of “dust”
  on the sensor window.
• “Quick Disassembly” design for faster clean up. Can be dismantled in only a few minutes without
  the use of tools, making production changeover easy and time-saving.

• Excellent after sales service support including free 3-4 days set up, integrations, commissioning and
  training at no extra costs to our customers.

Vanguard Pharmaceutical Machinery, Automatic Tablet/Capsule Counter and Filler
0

Technical Parameters

Number of Counting Channels: 24
Feeding Hopper: 1.06 cubic feet (30 liter)
Container Height Range: 40 ~ 240 mm
Container Opening: 20 ~ 115 mm
Product Specifications: Tablet Diameter 5 ~ 22mm;
Capsule #00 ~ 5
Single Bottle Capacity: 20~10000 pcs./min.
Max Speed: up to 90 bottles/min.
Power: 220V, 60Hz, 3-PH, 15A, (NEMA) or as required
Weight: Approx. 1,990 lbs
Dimension: 112" x 69" x 93" or  2850 x 1758 x 1848 mm
