General Description:

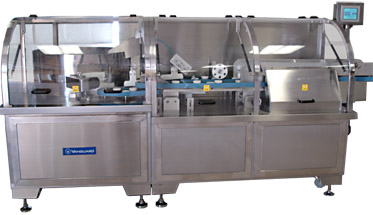

Model VBU-800 Automatic Hi-Speed Bottle Unscrambler is designed with stainless steel housing and Plexiglas enclosures for operator's safety and protection from dust. It has Automatic Speed Synchronization Setup: Operator dumps empty bottles in the large hopper.  With proper speed settings for bottles orientating and the hopper elevator transport bottles onto disc sorter to automatically determined according to bottle size to send to conveyor belt. Bottles are positioned by a special conveyor belt and other simple mechanical functions. It has a compact design with enclosed built-in hopper, automatic lid close/open and disc sorter eliminates noise and saves space. Memory capacity for 10 job settings: Speeds of disc sorter, product separator and orientating belt, as well as bottle height can be saved for future use. All speeds are automatically synchronized after Self-Programmed is accomplished.  There is only a single plate change part for changing bottle size, which takes only minutes for changeover.

Vanguard Pharmaceutical Machinery, Bottle Unscrambler

Features:
*  PLC Control w/standard 6-Inch Color Touch Screen Panel.
*  Variable speed control  *No change parts
*  Bottle Orientating assembly is accurate, adjustable and user friendly.
*  All 304 Stainless Steel Construction to meet the cGMP Standard.

V
 Model Name:  Bottle Unscrambler
 Bottle size range Diameter:  (30 mm ~ 85 mm)
 Bottle opening Min:  25 mm ~ 85 mm
 Bottle Height:  50 ~ 160 mm
 Bottle body height min:  45mm
 Output:  Up to 260 bottles/min.
 Power Consumption:  3.4 Kw
 Compressed Air Pressure:  85 psi
 Compressed Air Consumption:  3.5 cfm (100 liters/min)
 w/ air rising system: 28 cfm (800
 Machine Dimensions  89 x 52 x 55 (2263 x 1327 x 1403 mm)
 Machine Weight

 2,100 pounds
