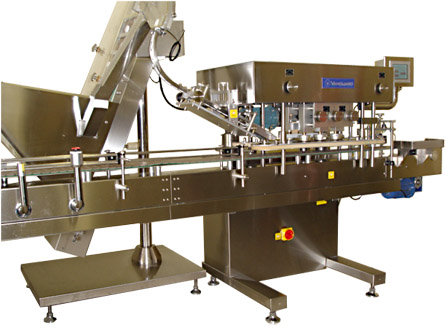

  VSG-200 INLINE CAPPER W/OPTIONAL SNAP-ON CAPPING SYSTEM

General Description:

Vanguard's VSG-200 Automatic In-Line/Spindle Capper is applicable for round, rectangular and most irregular bottles and containers. A noiseless Cap Elevator to unscramble and feed caps for capping system. Contains a large capacity floor level cap hopper to stock caps for long runs without continual refilling. The cap chute is adjustable for different size of caps. Unique design requires no changeover parts and no tools when changing caps sizes.  Four Hand wheels with digital indicators for quick and easy adjustments. A cap chute sensor is provided to detect caps in caps chute. The cap elevator will stop when the cap chute is full. A safety guard surrounds cap lightening station for operator safety. A fail safe dual inspection system removes incorrectly oriented caps from loading chute.

Vanguard Pharmaceutical Machinery, Automatic Desiccant Inserter



Features:
*  Rejecting system for improperly capped bottles and/or missing foil cap liners. (optional).
*  Sensor detection and rejection system available to remove off line improperly capped
   bottles and caps having missing foil cap liners.
*  Variable speed control.
*  Standard option PLC Control w/Color Touch Screen Panel

* Snap-On Capping System can be integrated into this unit for dual applications.

V
 Model Name:  VSG-200 In-Line Capper w/Large Floor Cap Elevator
 Bottle Diameter & Output:  22 ~ 120 mm & up to 120 bottles/min.
 Bottle Height  60 ~ 200 mm
 ( Bottle Heights under 60 mm available upon request)
 Cap Diameter  22 ~ 66 mm
 Power Consumption  2 Kw
 Compressed Air Pressure  87 psi
 Compressed Air Consumption  13 cfm (350 liters/min)
 Machine Dimensions  148 x 47 x 85 (2350 x 1200 x 2150 mm)
 Machine Weight

 3,250 lbs.
