Bottling Line #1

   Hi-Speed Unscrambler

  VSL-16 Counter

VSZ-2 Cottoner

VSZ-3 Desiccant
     Inserter

   VSG-200 Capper
   VFL-2000 Induction
     Sealer

  VTP-200 Labeler


  Bottling Line #2

   Hi-Speed
     Unscrambler


  VSL-24 Counter

VSZ-2 Cottoner

VSZ-3 Desiccant
     Inserter

   VSG-200 Capper
   VFL-2000
     Induction Sealer

  VTP-200 Labeler

   Bottling Production
    Layout

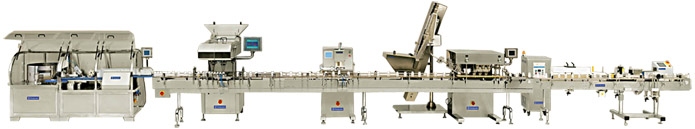

Vanguard Complete Bottling Production Line

Vanguard's Complete Automatic Tablet/Capsule Bottle Packaging Lines are suitable for counting and filling wide range of tablet sizes between 5-25mm and hard gelatin capsules #5 ~ #00 in plastic or glass bottles. It is the most complete, innovative and affordable bottling line in the marketplace. We fully integrated this line to include from bottle unscrambler, counting and filling, paper and desiccant inserting, capping, inspecting, induction sealing to pressure sensitive labeling system. The counter equipped with high quality U.S. Made Honeywell's Intelligent Sensors for 100% counting accuracy and reliable performance.  Unlike other standard counters in the market, our counter comes with Japan Made PLC Control with Color Touch Screen Panel.  Vibrating Nozzles, Dust Collection System, secure bottle neck system for precision filling, No Bottle--No Fill, Tool-Less dismantle for cleaning and maintenance, automatic lifting system for quick bottle height changing, etc. are among standard features on each unit.
  • The Most Complete Innovative and Affordable Bottle Packaging Lines in the market
  • Production Output:  Up to 60 bottles/min. on VSL-16 Counter & Up to 80 bottles/min. on VSL-24 Channel Counter
  • Custom integration available to meet specific requirements by our customers
  • Available Pre-Tablet Loading System w/Level Sensor
  • No Change Parts Required--All contact parts can be dismantled without tools.
  • Conformance to cGMP standard
  • 3-Level Vibrating Trays for Feeding
  • 2 Separate Vibratory Sections; 2 Separate Hoppers on VSL-24 Channel Counter
  • Standard Dual Lane Sanitary Conveyor
  • U.S. Banner Sensors & Japan PLC Control and Color Touch Screen Panel
  • Complete Onsite Integration, Set-Up, Installation and Training available worldwide

Vanguard Pharmaceutical Machinery, Mid Speed Bottling Line

VANGUARD MID-SPEED BOTTLING LINE INCLUDES:

Automatic Bottle Unscrambler
Capacity: Up to 260 bottles/min.
Dimension & Weight: 35” x 35” x 51” / 330 pounds


VSL-16 Automatic Counter & Filler
Capacity: Up to 60 bottles/min.
Air Consumption: 20 liters/min.
Dimension & Weight: 110” x 55” x 67” / 890 pounds

VSZ-2 Automatic Cottoner / VSZ-3 Automatic Desiccant Inserter
Capacity: 40-60 bottles/min.
Air Consumption: 40 liters/min.
Dimension & Weight: 47” x 24” x 59” / 260 pounds

VSG-200 Automatic In-Line Capper
Capacity: 50-120 bottles/min.
Air Consumption: 15 liters/min.
Dimension & Weight: 71” x 35” x 59” / 1300 pounds

VJSG Alu. Foil & Cap Inspecting/Rejecting Unit
Capacity: 60-100 bottles/min.
Air Consumption: 10 liters/min.
Dimension & Weight: 16” x 19” x 51” / 45 pounds

VFL-2000 Automatic Induction Sealer
Capacity: 80-150 bottles/min.
Dimension & Weight: 71” x 24” x 55” / 450 pounds

VTP-200 Automatic Labeler with Accumulation Tray
Capacity: 60-120 bottles/min.
Air Consumption: 15 liters/min.
Dimension & Weight: 83” x 24” x 51” / 550 pounds
