   VTC series Pharma Lifter is mainly used in the pharmaceutical industry for transferring solid dosage materials (in bulk, sachet, bag, or tank) between floors. Applying the VTC series Pharma Lifter has optimized the producing flow, avoided dust and cross pollution. Itís the desirable transferring equipment in pharmaceutical industry for solid dosage sector. Meanwhile, it can be widely used in such areas as raw medicine material industry, chemical industry, foodstuff industry, and many more.

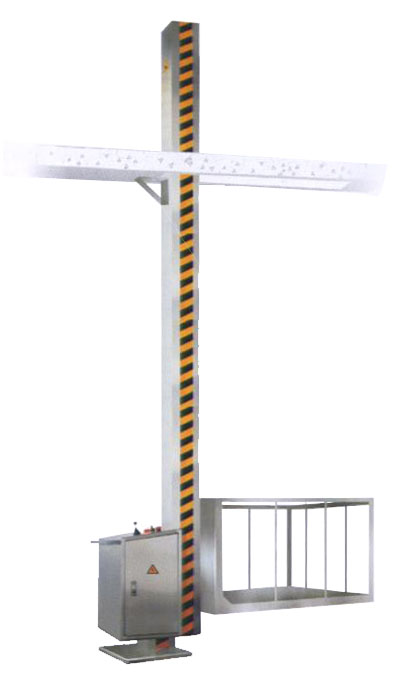

VTC series Pharma Lifter consists of operation panel, lengthened post, hydraulic system, material pallet, electric inter-lock system between floors, and safety limit appliance. To start to work, put the materials into the pallet then close the fence. Switch on the lifting handle, the pallet is lifted to the required height. The upper limit appliance then works safely, and the pallet stops. Open the fence, pull out the materials and finish the transferring craft.


Itís made of Austenitic stainless steel, contact parts are polished to high quality. There is no dead angle, no concave/convex face, and no screws on the surface. Itís easy to wash. The lengthened post specially isolated by curtain structure to satisfy the requirements of clean area. Especially designed with oil collector, this has avoided the hydraulic oil polluting the clean area. Equipped with electric inter-lock system and upper and lower limit appliance assures the safety when working between floors. Itís in conformity with GMP requirements.




Type \ Parameters
B
L
C
N
Load (kg)
Power (kw)
VTC-200
1600
1200
750
500
200
2.2
VTC-300
1620
1500
750
500
300
3
VTC-400
1650
1800
750
5000
400
3
