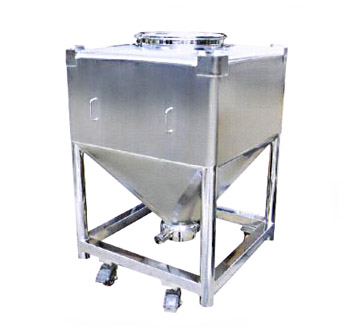

VLD SERIES PHARMA BIN




VLD Series Pharmaceutical Bin is one of the most popular shifting containers used in the producing flow of solid dosage. Different processing crafts for solid materials can be operated in the same container. The frequent charging and discharging of materials are reduced thus avoiding dust and cross pollution. Itís conformity with GMP requirements.


Itís made of Austenitic stainless steel. All Angles are cambered. There is no dead angle, con concave-convex face and no screw on surface. The surface outside and inside are polished to high quality. Roughness degree inside is Ra = 0.2 Ķ m, and outside is Ra = 0.4 Ķ m. Applying sealing appliance made of silicon latex on the cover to gain a good airproof quality. Tailor-made butterfly valve with no dead angle, no remnant, or appliance against wrong way operation is easy to dismantle and clean. Itís in conformity with GMP requirements.



Main Technical Parameters

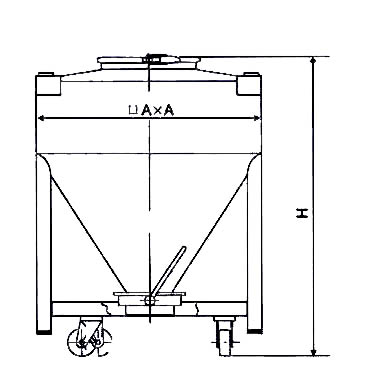

PARAMETERS \ TYPE

A

H

Volume (L)

VLD - 300

800

1120

300

VLD - 400

800

1280

400

VLD - 600

1000

1360

600

VLD - 800

1000

1530

800

VLD - 1000

1200

1600

1000

VLD - 1200

1200

1730

1200

VLD - 1500

1200

1860

1500

VLD - 1800

1200

1970

1800

VLD - 2000

1200

2250

2000
