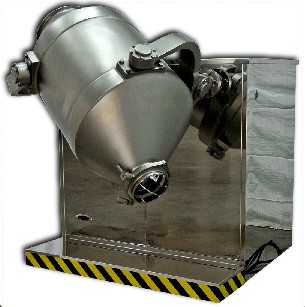

V3D Series

Usage
   V3D series multi-directional motions mixer is a novel material mixer extensively used in pharmaceutical, chemical, metallurgical, food, light and agricultural industries. This machine can carry out highly even mixing of powders or granules, so that the mixed materials can reach their best effectiveness.


Working Principle
   The mixing barrel is supported by the driving and driven shafts which are crossed in space and also vertical to each other, and are respectively connected by Y-type universal joints, so that the mixing barrel makes unique translational, turning, rocking and rolling motions in a solid three dimensional space, thereby speeds up the flow and diffusion of the materials being mixed, while avoids the specific-gravity segregation of materials due to the action of centrifugal force in an ordinary mixer, and ensures the materials to reach an ideal mixing within a short time.

More Pictures

Features:

·  It has a unique driven shaft servo mechanism, so that the whole machine makes smooth and reliable operation with less vibration and low noise; the equipment does not need a foundation and features convenient erection and maintenance as well as long service life.

·  It can ensure a good mixing effect and the mixing time is short. The evenness of mixing reaches above 99.5%.

·  Its charge coefficient reaches 85%, more than double that of an ordinary rotary mixer.

·  Thanks to its low height and small rotating space, it usually does not need skip floor.

·  The eccentric cone design of the discharge end of the mixing barrel ensures discharge free of dead corner and residue, so it is easy to clean and conforms to the requirement of GMP.

Main Technical Specifications

 Model

 V3D-5

 V3D-20

 V3D-50

 V3D-100

 V3D-200

 V3D-400

 V3D-600

 V3D-800

 V3D-1000

 V3D-1500

 Volume of Barrel

 5L

 20L

 50L

 100L

 200L

 400L

 600L

 800L

 1000L

 1500L

 Mixing Volume

 4L

 17L

 40L

 85L

 170L

 340L

 500L

 680L

 850L

 1300L

 Mixing Capacity(kg)

 4

 15

 40

 80

 100

 200

 300

 400

 500

 750

 Main Shaft Speed

 > 20rpm

 > 20rpm

 > 17rpm

 > 14rpm

 > 12rpm

 > 12rpm

 > 12 rpm

 > 12rpm

 > 12rpm

 > 12rpm

 Motor Power (kw)

 0.55

 0.55

 1.1

 2.2

 3

 4

 5.5

 7.5

 7.5

 11

 Weight (lbs)

 198

 220

 441

 1102

 1543

 2646

 3307

 4409

 4850

 7716

 Dimension

 35’’ x
 28’’ x
 26’’

 38’’ x
 31’’ x
 28’’

 47’’ x
 43’’ x
 47’’

 54’’ x
 59’’ x
 60’’

 71’’ x
 63’’ x
 67’’

 87’’ x
 75’’ x
 73’’

 94’’ x
 83’’ x
 81’’

 102’’ x
 98’’ x
 91’’

 110’’ x
 102’’ x
 94’’

 126’’ x
 123’’ x
 106’’
