Features & Applications

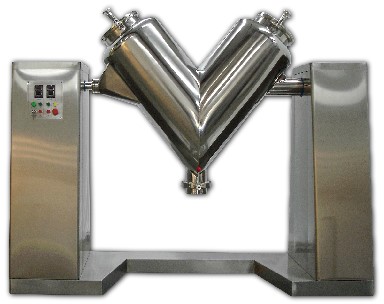

V-Shell Blenders are commonly used in pharmaceutical, nutriceutical, chemical, food and related industries to mix dried powder and granules.  It consists of two V-Shells of different or same altitudes, and through mechanical transmission, the materials in these shells are made to move back and forth, crossed over and rotate 360į to achieving ultimate uniform mixing.  Vanguard's V-Shell Blenders are rugged in designed and construction, 304 S.S. (optional 316L) mirror polished of inner and outer shell to meet the cGMP Standard.  We offer the most affordable V-Blenders in the marketplace from laboratory to large scale production batch.  We used heavy duty industrial ABB Motors & Drives for all 3-Phase V-Shell and intensifier bar.  Available OMRON Safety Sensor Gates for all V-Blenders (Additional).  Available Variable Speed Control on V-Shell and I-Bar.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player


More Pictures



This Mixer has the following distinguishing features: No blind angle in the V-Shells, no accumulation of materials, high speed I-bar, efficient and short mixing time. The housing are made of stainless steel.  The V-Shells have elegant appearance the charging of materials can be made either by manual operation or through pneumatic vacuum system. For discharging, rotating valves and rapid swivel heads are adopted.  Available Single Arm V-Shell Blenders (Interchangeable V-Shells on lab models), customize I-bar and also casters on laboratory models.  We offer both Cross Flow and Twin-Shell Formats of V-Blenders for different applications.

Installation Chart

Type

A*

B

C

D

h

V-5

1450

150

550

150

40

8-M12x150

V-10

1800

250

550

250

50

8-M12x220

V-18

1950

300

900

300

50

8-M16x220

V-35

2400

300

1350

300

70

8-M16x270

V-53

2590

400

1350

400

70

8-M16x270

V-70

2830

500

1600

500

70

8-M20x270

V-105

3330

500

1900

500

70

8-M20x270



Technical Specifications

Model

V-5CBF

V-10CBF

V-18CBF

V-35CBF

V-53CBF

V-70CBF

V-105CBF

Vessel Volume (L)

150

300

500

1000

1500

2000

3000

Max. Mixing Volume (L)

80

160

260

500

750

1000

1500

Max. Mixing Volume w/I-Bar (L) Opt.

85

175

285

NA NA NA NA

Max. Mixing Weight (kg/batch)

45

80

130

250

350

450

700

Mixing Time Recommend (min)

4~8

6~10

Mixing Rotation (rpm)

16

15

12

12

12

10

8

Mixing Power (kW)

0.75

1.1

1.5

3

4

5.5

7.5

Intensifier Bar Rotation (rpm) Opt.

550~650

NA

NA

Intensifier Bar Power (kW) Opt.

0.75

0.75

1.1

NA

NA

NA

NA



Dimension (mm)

Φ D

φ 400

φ 500

φ 600

φ 750

φ 850

φ 1000

φ 1200

DN

φ 150

φ 150

φ 200

φ 200

φ 200

φ 200

φ 200

L

1975

2500

2750

3200

3650

4000

4800

W

800

800

1220

1600

1600

1900

2200

H

1900

2000

2650

2700

2900

3310

3550

Working Height (mm) Ha

2040

2060

2720

3000

3200

3700

4000

wo/I-Bar Net Weight (kg)

260

300

450

880

900

1500

2000

w/I-Bar Net Weight (kg) Opt.

320

350

550

NA

NA

NA

NA

Note: Mixing capacity is based on 0.5 bulk density at 50% fill charge.  V-Shell Blender with Intensifier Bar has an additional 10% mixing volume.
