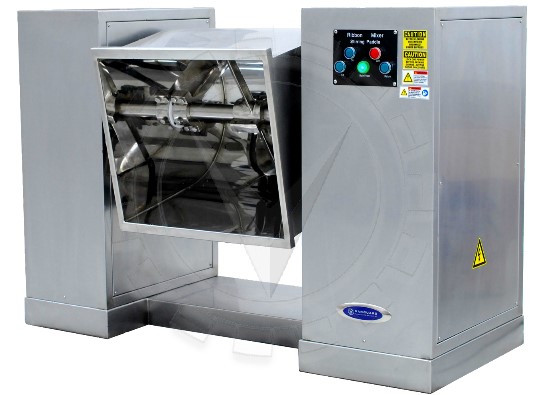

VRB Ribbon Blender

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

General Description
Ribbon Blenders consist of a U-shaped horizontal trough, transmission parts and ribbon agitating blades which usually have double or triple layers with outside screw gathering the material from sides to center and inside screw transmitting the material from center to sides to form convection mix and a specially fabricated ribbon agitator. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction. The ribbons rotate at approx. 300 fpm moves materials both radially and laterally to insure thorough blends in short cycle times.
Ribbon blender has a good result in the mix of viscosity or cohesion powder and of putting liquid and mash material into the powder. The cylinder cover can be fully open so it is easy to clean.

Ribbon blenders are commonly used in nutraceutical, chemical, food and related industries.  It is excellent for mixing both wet and dry products.

Technical Parameters

Model M Vol (CUFT) Load Coefficient Power (kW) Dimensions Machine Weight (kg)
VRB-0.1  3.5 0.4-0.8 3 1190×740×770 330
VRB-0.3 10 0.4-0.8 4 2030×630×980 720
VRB-0.5 18 0.4-0.8 7.5 2320×730×1130 980
VRB-1 35 0.4-0.8 11 2800×920×1320 1700
VRB-1.5 53 0.4-0.8 11 3180×1020×1550 1800
VRB-2 70 0.4-0.8 15 3310×1120×1640 2100
VRB-3 105 0.4-0.8 18.5 3750×1290×1820 3000
VRB-4 141 0.4-0.8 22 4220×1400×1990 3980
VRB-5 176 0.4-0.8 22 4220×1500×2100 4620
VRB-6 212 0.4-0.8 30 4700×1610×2260 6180
VRB-8 282 0.4-0.8 37 4420×2150×2470 8200
VRB-10 353 0.4-0.8 45 5520×2960×2720 8920
VRB-12 423 0.4-0.8 45 5720×3010×2840 9520
VRB-15 530 0.4-0.8 55 5840×3540×2940 9950
