Blister Packing Line
|

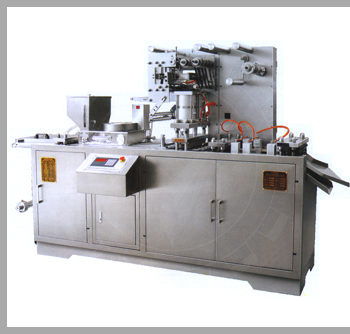

Model PBM-250S is a mid-speed
automatic blister packing machine designed to pack all types of
capsules, tablets, softgels, injection solution, syringe and other small
laboratory or hospital preparation products. The different between this model
and the PBM-140S is the maximum shaping area. It can also pack small products
in different types of clamp shell packages. It is widely used in the
pharmaceutical, herbal, food and other related industries. It is suitable for
packing with hard aluminum/aluminum, aluminum/PVC, paper/plastic laminated
materials.
Its functions are aluminum foil automatic feeding, upper and lower cobweb male and female joining, multistage cylinder heat sealing, automatic indenting, batch number printing and aluminum alloy double heating. Other new features are as follows: |
| Cutting frequency | 20 - 40 times a minute |
| Produce ability | 4.8 - 20.2 mil pcs an hour |
| Max shaping area | 240 x 110 mm |
| Range of working travel (mm) | 40 - 120 |
| Standard sheet (mm) | 80 x 57 |
| Air pressure | 0.4MPa - 0.6MPa |
| Power | 1.5 kw |
| Alu hard pieces (mm) | 0.15 - 0.5 x 250 |
| PTP Aluminum Alu foil (mm) | 0.02 - 0.35 x 250 |
| Dialysis paper (mm) | 50 - 100g x 250 |
| Mould cooling | Running water or back water |
| Dimensions (mm) | 2700 x 890 x 1450 |
| Weight | 1300kg |
