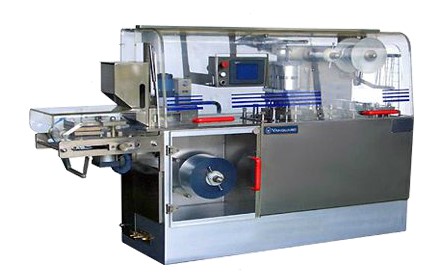

Vanguard Pharmaceutical Machinery Aluminum Blister Packing Machines


   The same function and character with 250 model: frequency control, adjustable stroke equipped with Micro-Adjustable Device, touch heating, positive forming, capsule orientating, photo-electric register, air-cushion heat sealing, press trace and perforation line, stamping batch number function included.
   It is suitable for small and medium size pharmaceutical factory packing capsules, tablets (irregular tablets), and pills of small batches and more variety production.

Other new features are as follows:
  • The spaces between the parts of shaping, heat sealing and cutting can be adjusted as required. It is excellent for packing medicines of various sizes with high precision and efficiency.
  • It is drawn by a mechanical hand with an adjustable travel and easy and reliable operation.
  • It has a planned-hear speed reducer with low noise and a long service life. It's easy to replace and change parts accurately. The frequency control of motor speed has high performance and efficiency with a cutting of 35 times a minute.

    •  Production Capacity:  up to 50,000 capsule or tablets per hour
     Adjustable Range of Stroke  40 - 110 mm (1.6" ~ 1.4")
     Punch Frequency:  15 - 35 cycles/min  2 sheets/time
     Air Compressor:

     > 0.2m3/min  1.5kw
     Weight:    650kg (1433lbs)
     Overall Dimensions:   (89'')x (22.5'') x (54'')
     Dimensions of Packaging   (92'') x (30'') x (63'')
     Total Power:   220V  60Hz  3.2kw  (380V  50Hz 3.2kw )
