Cooler & Recycler

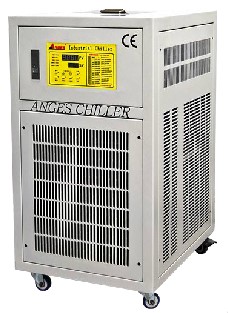

Anges Water Chiller



Español



Refrigeration Capacity

kcal/h

2786

KW

3.24

Input Power

KW

1.34

Power Source

1HP-220V/60Hz

Refrigeration

Type

R22

Compressor

Type

Enclosed Rotor

Power

KW

0.89

Condenser

Cooling Capacity (m 3/h)

1000

Evaporator

Refrigeration Capacity (m 3/h)

0.557

Water Tank Volume (L)

20

Inlet & Outlet Water Pipe Dimension

1/2”

Water Pump

Power

KW

0.37

Overall Dimension

L X W X H

25” x 17” x 27”

Net Weight

Lbs

160


    This unit is an optional accessory for the blister packing, tube filling (hot air) and high speed milling machines, where a portable water cooling and recycling system is needed. It can provide constant flow and pressure cooling water. It is widely used in pharmaceutical and food industry, which need a portable cooling equipment. It is a product of reducing energy consumption that can prevent the company from wasting water.  Each unit is capable of running two blister packing machines, etc.

Working principles:
  • Filling water in the tank through the water cooling system.
  • Through the pump, the water is pressed into the machine that is needed be cooled.
  • The water circulates in the tank automatically and maintain proper cooling temperature.
  • The temperature of the cooling water can be adjusted automatically according to the requirement.
