Technique             Agglomeration





Features

Vanguard’s Fluid Bed Dryer offer the outstanding advantages of efficiency and product uniformity achieved with fluid bed dryers. The process uses high-pressure air to atomize a liquid binder solution creating binder droplets in a fluidized particle bed creating liquid bridges between the discrete particles and increasing granule size. The advantage of this process is two unit operations (drying and granulating) are accomplished in a single processing step. Granules produced by this method are highly porous and quick solvable, which is widely used in pharmaceutical, chemical and foodstuff industries worldwide.

Fluid Bed Dryers are commonly used for process applications, which require excellent product uniformity, particle size, moisture content and morphology. These granulators are ruggedly and precision built to achieve consistent batch-to-batch repeatability. This granulation technology has also been applied in the food ingredient, agricultural, nutritional and powdered chemical industries.















VFG-B Main parameter (as reference)
Specification
Model Name
Specification
VFG-15B
VFG-30B
VFG-60B
VFG-120B
VFG-200B
VFG-300B
VFG-500B
Material Container
Volume (L)
45
100
220
420
670
1000
1500
Dimension  (mm)
750
800
1000
1200
1400
16000
1800
Capacity (Kg/batch)
15
30
60
120
200
300
500
Steam
Pressure (Mpa)
0.4-0.6
Steam flow (kg/h)
20
60
120
140
180
310
400


Compression air
Pressure (Mpa)
0.4-0.6
Steam flow (m3/min)
0.6
0.6
0.9
0.9
1.1
1.1
1.5
Blower (kw)
3
5.5
11
18.5
22
30
45
Heater (kw)
12
21
30
48
87
163
185
Noise (db)
less than 75 db

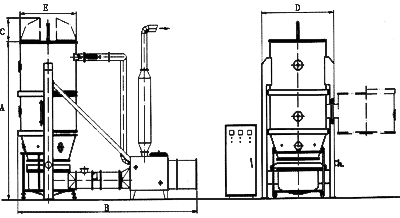

Tower Dimension (mm)
A
1900
2100
2250
2650
2800
3500
4000
B
1350
1800
2400
3200
3800
4200
4200
C
380
420
480
500
520
600
680
D
700
1100
1320
1420
1640
2000
2260
E
700
860
1000
1200
1400
1600
1800
