Technique             Agglomeration




General

    This is a popular granulating machine used for forming the required granule sizes from moist power material, or for crushing dried block stock into granules in required size.

    Its main features are: the rotating speed of the rotor can be adjusted during operation and the sieve can be removed and remounted easily; its tension is also adjustable. The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components.

   These granulators are constructed with quality stainless steel to meet the GMP Standard. The OSG Series are among the most affordable oscillating granulators in the industry.

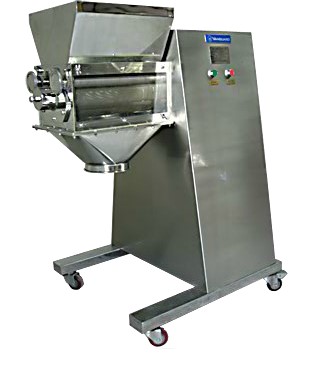

 Model  OSG-400
 Diameter of Rotor  160 mm
 Effective Length of Rotor  360 mm
 Rotor Speed  60 - 100 rpm
 Rotation Range  360 degree
 Capacity (dry)  700 kg/h (1,540 lbs/hr.)
 Capacity (wet)  300 kg/h ( 660 lbs/hr.)
 Hopper Opening Size (L x W)  410 x 430 mm  (16"x17")
 Motor  2.2 kW, 1410 rpm
 Overall Dimension (mm)  960 x 750 x 1240 (38"x29"x49")
 Net Weight  420 kg  or 925 lbs
