Fluid-Bed Granulator
Mini Multi-Functional  (Lab Use)
Multi Function (VPL)Granulating CoaterTop Spray

Granulator
Oscillating (OSG)
High Shear (VHG-G)


Technique             Agglomeration



General

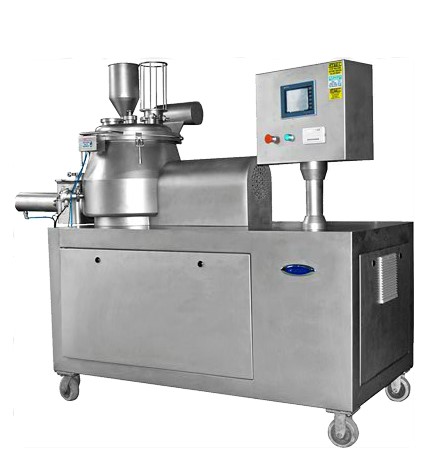

   VHG-G High Shear Granulator is widely used in granulation process of pharmaceutical, food and feed industry because if it high efficient.

Main Characteristics:
  • The machine main tower is made by 304 or SUS 316 L into four sections machine cabinet, Mix system, Mincing system and control system.
  • PMaking rounder and stronger granules with high density
  • Mixing and granulating in one step
  • Automatic discharge
  • Improved MZ8 shaped Mixer
  • Compressed air seal and mixer and chopper.
  • Save process time
  • Intelligent Control System

  •  Model

     Total
     Volume
    (L)

     Working
     Volume (L)

     Container Dimensions (mm)

     Mix Speed (rpm)

     Mix Power (kW)

     Chopper Speed (rpm)

     Chopper
     Power (
    kW)
     Dimensions (mm)

    VHG-G10

    10

    3-8

    262

    100-1000

    1.5

    280-2800

    0.75 1490 x 540 x 1330

    VHG-G25

    25

    7-20

    360

    70-700

    2.2

    280-2800

    1.1 1870 x 630 x 1360

    VHG-G50

    50

    13-40

    480

    48-480

    5.5

    280-2800

    1.5 2000 x 700 x 1500

    VHG-G100

    100 25-80 600 25-250 7.5 280-2800 4 2150 x 900 x 1840

    VHG-150

    150

    30-120

    700

    22-220

    11

    280-2800

    5.5 2350 x 1050 x 200

    VHG-G200

    200

    63-160

    800

    22-220

    15

    280-2800

    5.5 2500 x 1050 x 2200

    VHG-G250

    250

    188-200

    900

    22-220

    22

    280-2800

    7.5 2850 x 1200 x 2570

    VHG-G300

    300

    75-240

    950

    20-200

    22

    280-2800

    7.5 3000 x 1200 x 2600
    VHG-G400
    400 100-320 1000 16-160 22 280-2800 7.5 3000 x 1200 x 2600

    Higher capacity blenders available as well, please inquire within for a quotation.
