VHD Handheld Thickness Series


   VHD Handheld thickness is the latest development production of our company, which is the requisite instrument in detecting thickness of tablet and capsule. Its design and technical specifications of this tester reached or surpassed the advanced level of this kind of instrument in the world.

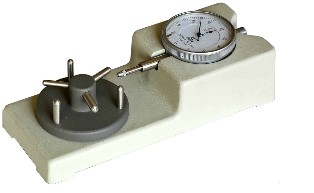

VHD-1 Table Model Capsule Thickness Tester

  • VHD-1 table model capsule thickness tester used for measurement of peak thickness and thickness of capsules.
  • It has a high accuracy test with the best precise dial indicator.
  • Simple and direct constructions have made its outward appearance pleasing to the eyes.

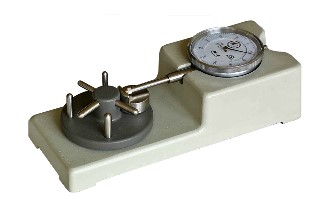

VHD-2 Table Model Combination Thickness Tester
  • VHD-2 table model combination thickness tester used for measurement of peak thickness and thickness of capsules or thickness & diameter of tablets and pills.
  • It has high accuracy test with the best precise dial indicator.
  • Simple and direct constructions have made its outward appearance pleasing to the eyes.

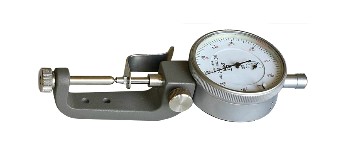

VHD-3 Handheld Capsule Thickness Tester
  • VHD-3 handheld capsule thickness tester used for measurement of peak thickness and thickness of capsules.
  • It has high accuracy test with the best precise dial indicator.
  • Simple and direct constructions have made its outward appearance pleasing to the eyes.
VHD-4 Handheld Combination Thickness Tester
  • VHD-4 handheld combination thickness tester used for measurement of peak thickness and thickness of capsules or thickness & diameter of tablet and pill.
  • It has high accuracy test with the most precise dial indicator.
  • Simple and direct constructions have made its outward appearance pleasing to the eyes.












Specification:
 Model VHD-1 VHD-2 VHD-3 VHD-4
 Test Range 0 ~ 5 mm 0 ~ 30 mm 0 ~ 5 mm 0 ~ 30 mm
 Test Accuracy 0.01mm
 Type of Capsule 00, 0, 1, 2, 3, 4 type capsule
 Range of Test Tablet N/A 0 ~ 30 mm N/A 0 ~ 30 mm
 Dimension

200 x 80 x 50 mm3

160x 55 x 40 mm3

 Weight

0.9KG

0.3KG
