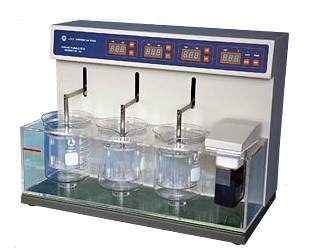

LIJ Disintegration Tester Series




Model LIJ Disintegration Tester Series are the latest development and production of our company, which is the requisite instrument in detecting disintegration of solid dosage products. The design and technical specs of these testers reached or surpassed the advanced level of this kind of instrument in the world.  All our lab instruments are engineered and built in according to USP Specifications.

Features include:
  • Disintegration series used a MPU to control all operations. The bath liquid can achieve an even temperature.
  • Each test station is driven independently. It stops running at the end of a test.
  • All components are selected of high quality brands.
  • It can be operated conveniently by using keys. Its measurement results are displayed by LED.
  • High quality designed and ruggedly built to meet the USP Codes.



























Specification:
 Model LIJ-1 LIJ-2 LIJ-3
 Nacelles 1 2 3
 Nacelle glass tubes 6
 Vol. of Beaker 1000 ml
 Nacelle Stroke Frequency 29 ~ 32 /min
 Nacelle Stroke Distance

55 1 mm

 Temp. Range

Ambient to +45 C

 Automatic Temp. Accuracy

  0.5 C

 Power of the Heater

500W

 Continuous Work

> 24 hours

 Power

110V,  60Hz, 1-Ph,  600W or as required

 Dimension (L x W x H)

260 x 300 x420 mm3

400 x 300 x 420 mm3 560 x 300 420 mm3
 Weight

11kg (24lbs)

16kg (35lbs) 22kg (49lbs)
