  Vanguard Pharmaceutical Machinery Inc, VF Automatic Tube Filling / Sealing Machine

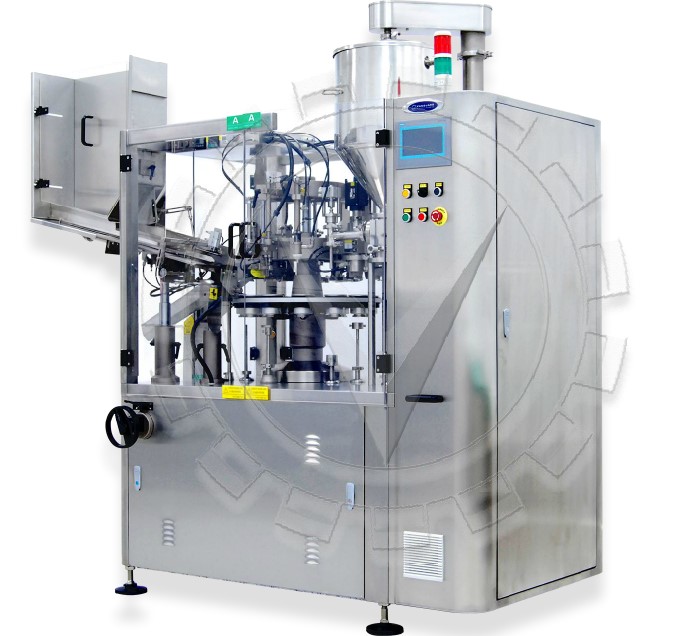

VF-100PIIID Tube Filler -Ø For Plastic, Plastic/Laminated, & Metal Tubes

Vanguard Automatic Tube Fillers are designed and engineered to produce outstanding quality and precision tube filling and sealing of plastic and plastic/laminate tubes with the output up to 90 tubes per minute. It is widely used in cosmetics, pharmaceuticals, chemicals and foodstuffs industries.

Our tube fillers can handle viscous, semi-viscous and liquid products from paste, ointment, lotion, topical, moisturizer, conditioner, cosmetics, toothpaste, shaving cream, and other chemical and foodstuff products.

Our tube fillers are being used in North America to produce and manufacture products for Kimberly Clark, Procter & Gamble, Unilever, VALJEAN, NCH, ITW, Island Kinetics, Deltex Pharmaceuticals, Sombra Cosmetics, Hawkeye, Creative Solutions, CoValence, Ion Labs…


Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

Additional Pictures: (click to enlarge)


• Dual Function Model for: Plastic soft tubes, Plastic/Laminated, & Aluminum/Metal Tubes
SIEMENS Color Touch Screen Control Technology
SIEMENS S7-700 PLC Control System
SIEMENS Variable Speed Converter—control production speed
SIEMENS Electrical Components
• Automatic tube loading, tube washing, positioning, filling, sealing & hot stamping
• Tube loading and tube washing are done pneumatically
• Ruggedly design, durable, easy to operate and simple maintenance
• Tube positioning is control by BANNER Photoelectric Sensor
• All FESTO Pneumatic & OMRON Electrical/Sensor Components
• Robotic Arms--Made in Japan
• Optional Euro-Tap System For Automatic Hole Punching
• Optional 10.5-Inch SIEMENS Color Touch Screen Control Panel
• Equipped with Temperature Control and Separate Cooling System
• No Tube, No Fill — Alarm will go off!
• Triple Fold only Available for Metal Tubes!
• Available Servo Motor for Photo-Registering
• Bottom-up filling with shut-off nozzle to ensuring accurate & clean fill
• Available multiple products filled—single/double/triple color!
• Tool less adjustment and cleaning
• Safety Production and Overload Protection Features are included
• Stainless Steel Construction and all parts contacted with material are high quality 316L stainless steel to meet cGMP standard
• Double Jacketed Temperature Control Hopper and Agitator are available as options


Technical Specifications

Model Name VF-100PIIID (Plastic / Plastic-Laminated/Aluminum-Metal Tubes)
Appearance/Shape Rounded
Filling Range (changeable) 3-250ml
Tube Length 2” to 8” or ( 50 - 200mm)
Tube Diameter 0.5” to 2” or (13.5 - 50mm)
Max. Capacity (tubes/min.) 19mm tube size (30ml or 1 oz. standard cream filling) ~ 70 tubes per min.
35mm tube size (118ml or 4 oz. standard cream filling) ~ 60 tubes per min. 50mm tube size (210ml or 7 oz. standard cream filling) ~ 40 tubes per min.
Number of Rotating Stations 12
Filling Head 1
Hopper Capacity (L) 50
Power Supply 220V, 60Hz, 4 Wires, 3 Phases, 30 Amps or as required
Filling Accuracy 99.5%
Air Consumption & Pressure 72 – 87 psi at 40CFM (0.5-0.6 Mpa at 1.1m³/min)
Dimensions ( l x w x h) 94” x 43” x 94”' (2400x1100x2400m³) *Height Includes Stirrer System
Net Weight 2970 lbs (1350kg)
