Vanguard Pharmaceutical Machinery, Automatic Liquid Filling Machine

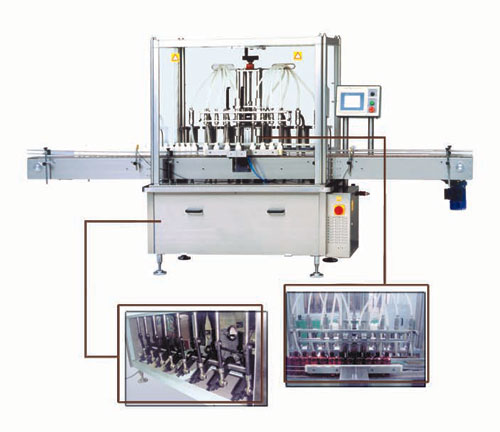

Vanguard AFL Series Automatic Liquid Fillers

  •  cGMP Design / cGMP Standard
  •  User – Friendly
  •  Easy to adjust from one bottle size to another
  •  All bottles can be adjusted according to any types of liquid filling
  •  A full spectrum of usage in pharmaceutical, cosmetics, chemical, foodstuffs, etc…
  •  Variable Speed Drive
  •  Quick Cleaning and Simple to Maintain
  •  Accurate Filling
  •  Custom filling heads are available to meet different filling requirements
  •  PLC Touch Screen Control System
  •  The Most Advanced and Economical Automatic Liquid Filler in the industry

More Pictures


Filling Mechanism
  • Speed Reducer controls the filling cylinder--which is also great for filling thick liquid as well
  • Each filling cylinder is precisely controls the accuracy of the filling amount in each container
Bottle Filling System
  •  8-Heads fill simultaneously and accurately
  • Features No Drip Fill Heads
  • Custom heads are available upon request
  • All touch materials parts are made of high quality 316L stainless steel
  • No bottle, bottle block, or no filling head in the bottle--No fill

Custom built larger cylinders are available on all models below to accommodate any filling volume required.

 Model  AFL-18 Liquid Filler  AFL-8 Liquid Filler  AFL-4 Liquid Filler  AFL-175 Liquid FIller
 Filling Capacity  3 - 18 oz. (90-520ml)  1.5 -8 oz. (40-220ml)  1.5 - 4 oz. (15-110ml)  28 - 175 oz.(800-5000ml)
 Filling Head  8 sets  8 sets  8 sets  4 sets
 Speed  40 - 55 bottle / min.  40 - 60 bottle / min.  40 - 60 bottle / min.  16 - 24 bottle / min.
 Power Sources  220V60Hz 3Phases
 5 wires
 220V60Hz 3Phases
 5 wires
 220V60Hz 3Phases
 5 wires
 220V60Hz 3Phases
 5 wires
 Power (HP)  1.34  1.0  1.75  2.0
 Dimension (LxWxH)  134” x 32” x 75”  134” x 32” x 75”  134” x 32” x 75”  189” x 32” x 75”
