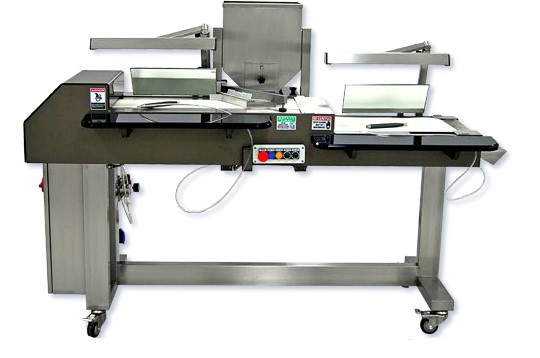

TI-500 Tablet Inspecting & Rejecting Machine







The tablets flow from the feed hopper into a vibratory chute where a perforated screen eliminates
coarse, dust and chips and then collected in a below container. Tablets enter the inspection stage in a single layer. The tablets are transported on a large conveyor belt made from a FDA approved material.






There are two stages of the inspection process:

  • a) Tablets will be inspected on the upper sides and the first operator can easily eject the unqualified tablets.
  • b) A special conveyor system will automatically flip the tablets to have them inspected and ejected the bottom sides by the second operator.

  • Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

    During both inspection stages, the products lie flat on the belt and do not move or vibrate
    • The sorting machine Model TI-500 with tablet turn-over system enables your operators to inspect
      reliably up to 50 kg of tablets per hour from all sides.
    • With calibrated work lights above the inspection zones, defective tablets can be eliminated by the
      operators with two flexible hand-held vacuum nozzles.
    • Any possibility of contaminating the product with abrasion of belts or chains is eliminated.
    • Integrated collection box for rejects within reach of the operator.
    • For cleaning purposes the machine can be completely dismantled without any tools within a few minutes,  easy to clean, no cross contamination risk.
    • No noisy external vacuum cleaner necessary through the use of compact Venturi suction system
    • Reduced fatigue of the operator through ergonomic design.

    Main Technical Parameters

     Application Inspection of small and medium sized tablets..
    Production Speed Infinitely adjustable.
     Output: Up to 50 kg tablets, depending on  product & product size
     Feed hopper 30 L
     Electrical Connection: 220V/50Hz, single phase
    110V/60Hz. single phase
     Power Output 0.6 kw
     Compressed Air: 0.6 MPa
     Dimensions: 1850 x 850 x 1315 mm
     Weight: 330 lbs
