Capsule Polisher

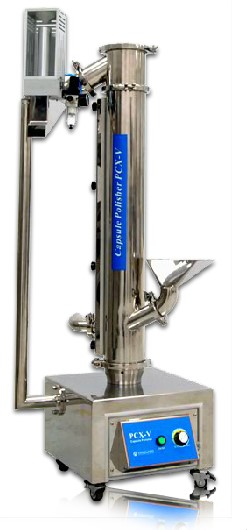

PCX-V Uphill Capsule Polisher

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player



General Description
• PCX-V Capsule Polisher and Sorter can be connected with any capsule filler and metal detector for achieve inline capsule polishing, elevating, sorting and metal detecting.
• 360° circle adjustment for inlet and outlet to make production more convenient and save mfg space;
• Automatically sort less dosage, empty, fractured and cap-body separated capsule;
• Safe and quick disassembly and assembly;
• Parts in contact with medicine all made of 316L stainless steel and other material conforms to FDA requirement;
• Detachable brush on main shaft can be thoroughly cleaned. No blind spot during cleaning process. Meet cGMP Standard.
• Excellent polishing performance, high production efficiency, easy movement.


More Pictures

Technical Specifications

 Model  PCX-V
 Capsule Sizes   00# 0# 1# 2# 3# 4#
 Capacity  300,000 Capsules/hour
 Air Compression  0.3m3/min   0.3Mpa
 Inlet Height  730mm
 Outlet Height  1088mm
 Machine Overall Dimension                  1217 x 490 x 1500mm
 Net Weight  76KG
